SE SEI INTERESSATO A FARE CONTEST IN HF MANDA UNA EMAIL A "oldradio",
SIAMO SEMPRE ALLA RICERCA DI OPERATORI (OM) DISPONIBILI A FARE CONTEST.-


IF YOU ARE INTERESTED TO PARTECIPATE IN HF CONTEST, PLEASE SEND AN EMAIL TO "oldradio",
WE ARE ALWAYS LOOKING FOR GOOD OPERATORS.-



SCARICA LA PRESENTAZIONE SU COME INIZIARE A FARE CONTEST (ARI Mantova 2014)

DOWNLOAD HOW TO START TO MAKE CONTESTS (ARI Mantova 2014)




Please check if you are in my LOG
Order your QSL's on line
My latest 10 QSO's on HF




San Giorgio Remote Farm Station Streaming LOCAL (inside IK2YCW network).....see if I am on the air now


San Giorgio Remote Farm Station Streaming REMOTE (from everywhere).....see if I am on the air now


Here below my updated DXCC score:



New Shack 2018-2019 views

Please note the Faraday cage all around the room...big improvement compare to the old set up


CQWW SSB 2019


IARU 2018


Station 1 & 2 with Icom 7851 and 7800 and OMPower 4000A & OMPower 3500A ...plus a glass of cold beer


Station 3 at the end of the table with Icom 7800 and ACOM 2000A.
All antennas have 4O3A filters on high power and each station have a OM6BPF filter on low power line


Station 1 & 2 running Wintest in the IARU 2018 contest as IO2HQ.
Antennas are managed by 3 Station Masters and several automatic Microham 10 switchs
that allow each station to use any free antennas


IK2QPR and IW2HAJ in IARU 2018 contest as IO2HQ






A view of the IK2YCW antennas farm with 3 Towers.

TOWER 1: 2x SteppIR 4 elements and 6 elements for 50 Mhz.

TOWER 2: OB30-40: 2 elements for 30 and 40 meters at 29 meters
and OB21-3: 5 elements for 20, 5 elements for 15, and 11 elements for 10 at 26 meters

TOWER 3: 3 elements for 40 at 30 meters high, 5 elements for 20 at 34
meters high and 6 elements for 15 at 38 meters high
(still missing a 6x15 at 28 meters and 5x20 at 23 meters for stack purpose)

Vertical for 160: 27 meters toll with capacitive adaptor and 64 radials
Vertical for 80: Full size with 64 radials

Dipole for 160, 80 and 40 meters.

See the new vertical multiband and the new 4SQ 160-80 meters inband antennas on the pictures below





A partial view of the IK2YCW antennas farm with 2x SteppIR 4 elements on TOWER 1
the OB30-40 meters and the OB21-3 on TOWER 2
Vertical for 160 meters and Vertical for 80 meters.
Dipole for 80 and 160 meters, 6 elements for 6 meters on Tower 1.






A view of new Tower 3: 3 elem x 40 , 5 elem x 20 , 6 elem x 15.
Next year we are going to add a stack of 15 and 20 meters antennas
You may see also a good 80 meters dipole hanging from the tower, soon I will add one more 160 dipole





A morning view of TOWER 3





Tower 3 control box.
Wifi and Internet controlled: Up, Down, Rotator all Wifi/internet controlled.
Tower will automatically retract with wind exciting 50 km/hrs.






A view of TOWER 2 with an OB30-40 for 40&30 at 28 meters high
The OB21-3 for 20-15-10 meters at 25 meters high
There are 2 elements for 40 and 30 meters, 5 elements for 20 and 15 meters, and 11 elements for 10 meters.






A view of TOWER 1 with 2x 4 elem (20-15-10) Stepper in Stack (the 40 meters bazookas have been removed)





Latest 4SQ receiving antenna. Here you see the control box.
Directions: 350,80,170,260 degrees.





One element of the 4SQ receiving antenna spaced for 80-160 meters.





The inband vertical antenna to use for all bands.






View of 2 Beverages connection internet controlled unit
Only beverage 300 degrees will be up all year, the others will be up only in winter time






View of my 300 - 340 and 60 degrees beverages





View of my 5 beverages internet controlled unit





View of my beverages termination load and direction inverter internet controlled unit






Pictures collection of my station since 2004

Back

From left Low level: Monitor PC 1, Icom 7800, Icom SP-20, SM-8, Icom IC-781, Monitor PC 2
From left Mid level: Speaker, Kenwood R-5000, Speaker, Universal M-7000 Decoder
Fron left II Mid level: Yaesu G-450C Rotor, Kenwood TS-120V, Icom 706 MKIIG, RTTY Monitor
Top level: Icom 756 ProII




From left:Henry Amplifier 3KW, Siemens Funk 745E 309b,Geloso G4/214, Geloso G-222





Quad 2 Elements "Cubex" tri-bands during assembly and testing before final installation


Since June 2007 is active a "IK2YCW San Giorgio Remote Station" fully controlled by Internet.
The station features an ICOM 756proII, an Acom 2000 fully automatic amplifier.
A 2X4 elements SteppIR antenna with 40 an 30 meters option and two dipoles.One for 160 and one for 80 meters band.

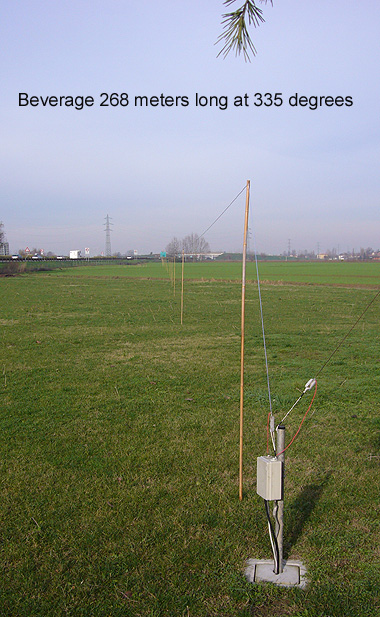

2 Beverages 268 meters long:one at 330 and the second at 35 degrees.I can select remotly the needed beverage
The station is fully automated, it can be turned ON and OFF by an SMS message and then controlled by
a PC with Internet connection.
The software to controll the radio can be any commercial available packages (I am using DXlab or in alternative HamDeluxe)
I am using also Serial ports over TCP/IP instead of local serial ports.
There are many software available to transfer serial ports over TCP/IP,
but my preference is the "Serial to Ethernet Connector".

For the voice link, I am using either SKYPE (for worldwide locations) or a 420Mhz link
with an Icom 7000 when I am on my regular QTH.

In the next pictures you can see a schematic of the station and below a picture of the Tower
with 4x4 Steppir antennas as well as dipoles and the two beverages.





San Giorgio IK2YCW Remote Station control Diagram


Look at my Remote Station Presentation

Look at my AWARDS and QSL

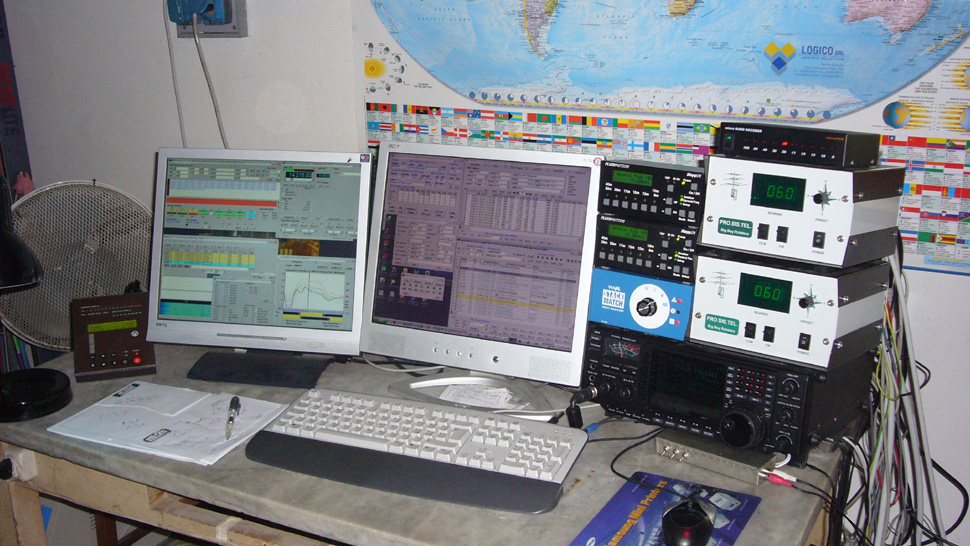

San Giorgio IK2YCW Remote controlled station




A different view of the 4x4 SteppIR




A view of the 4x4 SteppIR with a 6 elements for 6 meters






The vertical for 80 meters with 64 radials



A few details for the 80 meters vertical







Old Shack views


All 3 Stations view


Station 1 with Icom 7800, OMPower 3500A and 4O3A Filters (Main Station)


Station 2 with Icom 756 ProII and ACOM 2000A


Station 3 with Icom 781 and Henry 3K-A










Beverages view






Look at my AWARDS and QSL
