IK2YCW RFSPACE CLOUDIQ SDR RADIO




Hello,

My RFSPACE CLOUDIQ SDR is always ON ( beside unespected problems).
You are welcome to connect and use it.
The time allowed for each connection section is 60 minutes.

There are 2 antennas inputs:

RF1= CH300 = Beverages 300 degrees, mini Vertical and 4SQ (350 degrees -80 degrees -170 degrees -260 degrees) based on webpage selection.
RF2= CH 30 = Beverage at 30 and 60 degrees, mini Vertical (this channel is not always available or with all antennas)

My station location is at JN55KE.

To switch between the Beverage 300 or the Vertical or 4SQ, please connect to: http://88.149.150.61:8087/

You need a password to enter the page, please request it to my email address: oldradio@ik2ycw.it

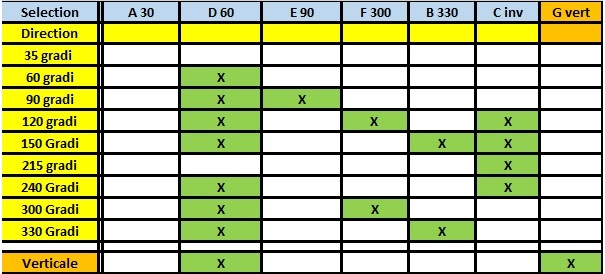

This is the rele code for selecting antennas when you are in ANT 1 input: CH300 on the SDR
(reles of CH30 (7,8) has no influence on RF input1):

4SQ 350 deg default ..........................................= All Rele are OFF (1,2,3,4,5 off)
4SQ 80 deg.........................................................= Rele 2 ON, every other rele OFF (1,3,4,5 off)
4SQ 170 deg.......................................................= Rele 3 ON, every other rele OFF (1,2,4,5 off)
4SQ 260 deg.......................................................= Rele 2&3 ON, every other rele OFF (1,4,5 off)
Bev 300 deg........................................................= Rele 4 ON, every other rele OFF (1,2,3,5 off)
Vertical CH 300..................................................= Rele 5 ON, every other rele OFF (1,2,3,4 off)

When you select ANT 2 input:CH30 on the SDR ,the selection of antennas are as follow
(reles of CH300 (2,3,4,5) has no influence on RF input2):

Beverage 30 deg default ....................................= no rele ON (6,7,8 off)
Beverage 60 deg ................................................= rele 8 ON (6,7 off)
Vertical CH 30 ...................................................= rele 8&7 ON (6 off)

Rele number 6 has the function to provide double direction to all the available beverages
and to provide power to the Mini Vertical on CH30

Double direction Beverages.............................. = Rele 6 ON (other reles follows above description)

Please do not use rele 1.
Please be also aware that if the system is not working as expected on the various directions or on antennas selection,
it means that is set to work in local mode and not in remote mode, it does means that I am using it.

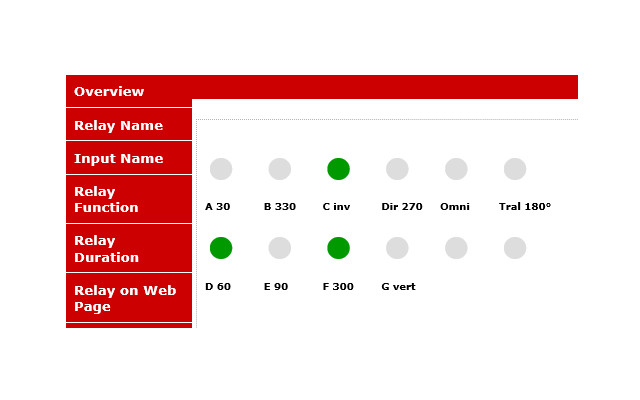

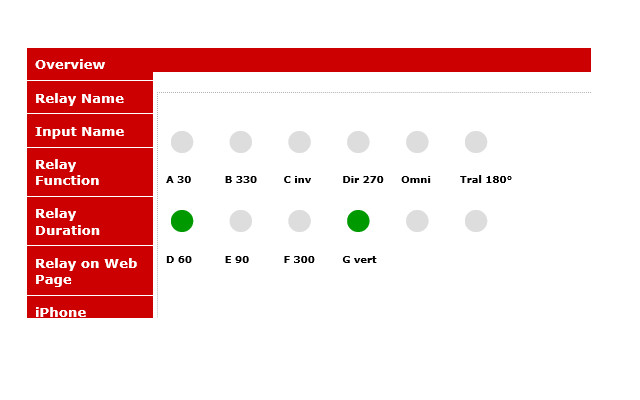

The example below shows how to select a 4SQ with the direction of 260 deg. on ANT 1 input and a Vertical CH30 on ANT 2 input.
